MarSurf CP/ CL select
Optical 2D/ 3D profilometry

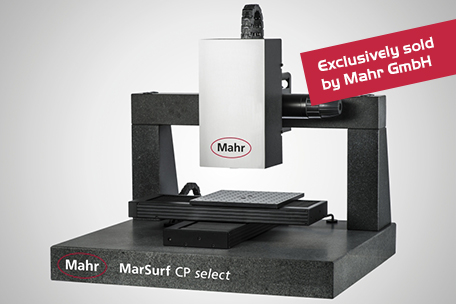

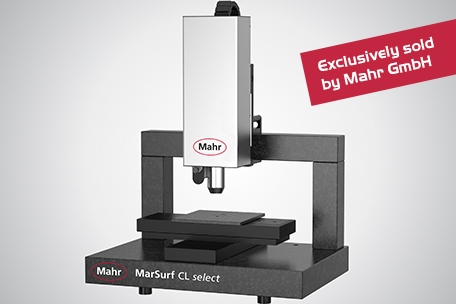

The compact MarSurf CP and the MarSurf CL select are optical profilometers for the three dimensional measurement and analysis of surfaces – non-tactile, independent of material and fast.
They are characterized by an extremely fast detection of large measuring surfaces with simultaneously high measuring precision.
Thanks to their modular design, the measuring systems can be adapted to different measuring tasks and individual requirements for automation, measuring comfort and accuracy. Depending on the measuring task, various sensors can be flexibly selected. Axis systems as well as software modules can be combined individually.
The MarSurf CP and CL select meet your individual requirements for automation, measuring comfort and accuracy - right up to the fully automated measuring solution.
The established optical measuring system is successfully used, for example, for:
- Roughness measurement according to DIN EN ISO 4287
- Topography measurement (including volume, wear, isotropy)
- Measurement of macro and microgeometries
- Determination of flatness and coplanarity
Maximum flexibility thanks to multicompatible sensor holding

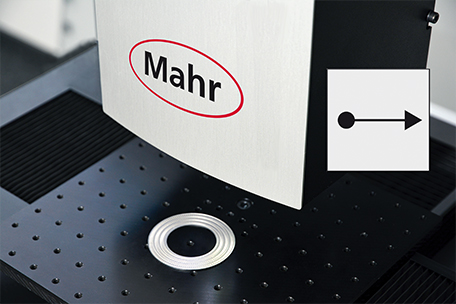

The sensor holder within the measurement head is designed for the flexible support of a variety of sensors. Sensors can be inserted into the holder easily and quickly. That makes replacement or interchanging sensors as easy as it sounds. It offers maximum combination options for using the most suitable sensor technology.
Examples of application
Today, a large number of our optical 3D profilometers are applied as industry standard where tactile profilometry with its known disadvantages were used before.
Erosion tool
The optical profilometer µscan custom analyzes the geometry and determines surface roughness according to ISO standards. Read more about the application
Paper machine clothing
The non-contact profilometer µscan custom captures the surface geometry of paper machine clothing fast and reliable. Read more about the application
Benefits at a glance
- Large-scale 3D measurement
- Very high measuring speed
- User-independent serial measurements by automation software
- Excellent flank acceptance
- Layer thickness measurement and measurement of transparent materials
- Large height measuring range with large working distance
- Robust and reliable
- User-friendly concept
